TL503ALSKQ Banner Signal Towers
Part#:TL503ALSKQ
Manufacturer:Banner
Alt. Part#:804979
Product Lifecycle:Active
Get a quick Quote!
TL50 Pro Tower Light with IO-Link Sealed Loud Audible, Standard Black Housing: 3 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP67; Colors: Multicolor; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL503ALSKQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight299.37072 g
- Country Of OriginMX
- Power DC
- Color Technology RGB IO-Link
- Supply Voltage 18-30 V dc
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 223.8
- Multi-Color Device Simultaneous Colors On
- Power Source DC
- Number of Tower Light Segments 4
- Dimming Option Programmable
- Environmental Rating IP67
- Feature: Quick Disconnect Yes
- Housing Style Base Mount - Tower
- Connection Integral QD
- Min Audible Intensity (db at 1m) 74
- NEMA Type and UL Type Rating NEMA and UL 13
- Primary Housing Material ABS
- Animation Option 1 Programmable
- Input Type Communication Protocol
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Quick Disconnect Type M12 (Euro)
- Max Input Response Time (ms) 20
- Primary Window Material Polycarbonate Diffused
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 3
- Max Current Color (mA) 100
- Max Audible Intensity (db at 1m) 94
- Primary Housing Color Black
- Product Size (mm) 50
- Color Option 1 RGB
- Audible Operating Frequency (kHz) 2.9
- Min Op. Temperature (°C) -20
- Color Input Control Communication Protocol
- Number of Input Pins/Conductors 4
- Max Current - Audible Alarm (mA) 35
- Feature: Hazardous Area No
- IO Link Yes
- Indication Yes
- Audible Alarm Type Continuous
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Chemical Resistant No
- Feature: Audible Yes
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL503ALSKQ Description

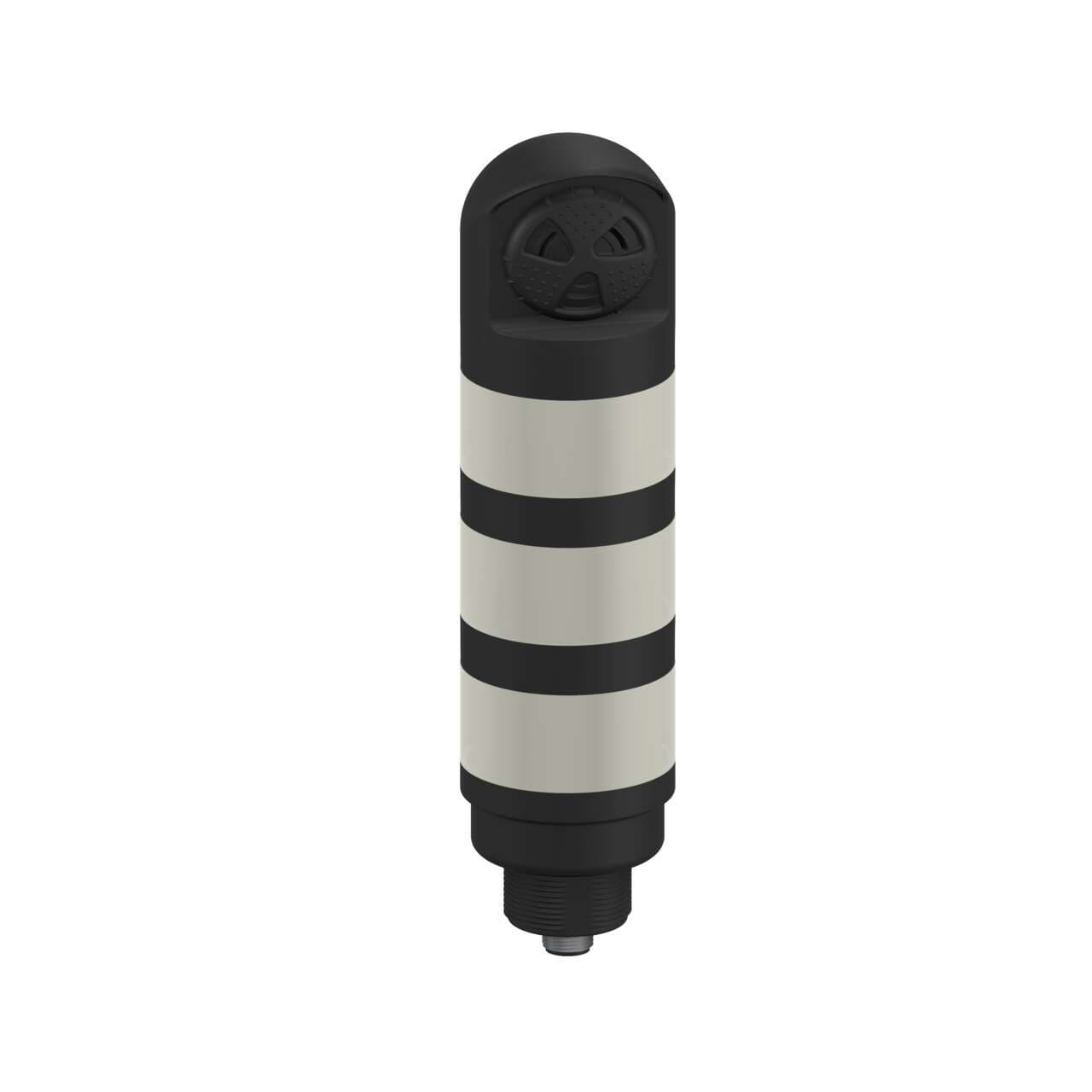

Banner Engineering TL503ALSKQ is a tower light from the Standard series, featuring a monolithic design with continuous loud sound and IO-Link compatibility. It has 3 tiers and offers 14-color multicolor LED illumination. The sealed audible programmable tower/stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. It has a 50mm / 2" diameter and comes pre-equipped with a 4-pin M12 Euro-style QD connector. The housing is black, and it operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). This product can be mounted via surface/base pole with an M30 thread. It is designed to operate in ambient air temperatures ranging from -20°C to +50°C and has a degree of protection rated at IP67, NEMA 13, UL type 13. The shape of the TL503ALSKQ is cylindrical, and it has a current consumption of 100mA.
Related documents TL503ALSKQ Specs
