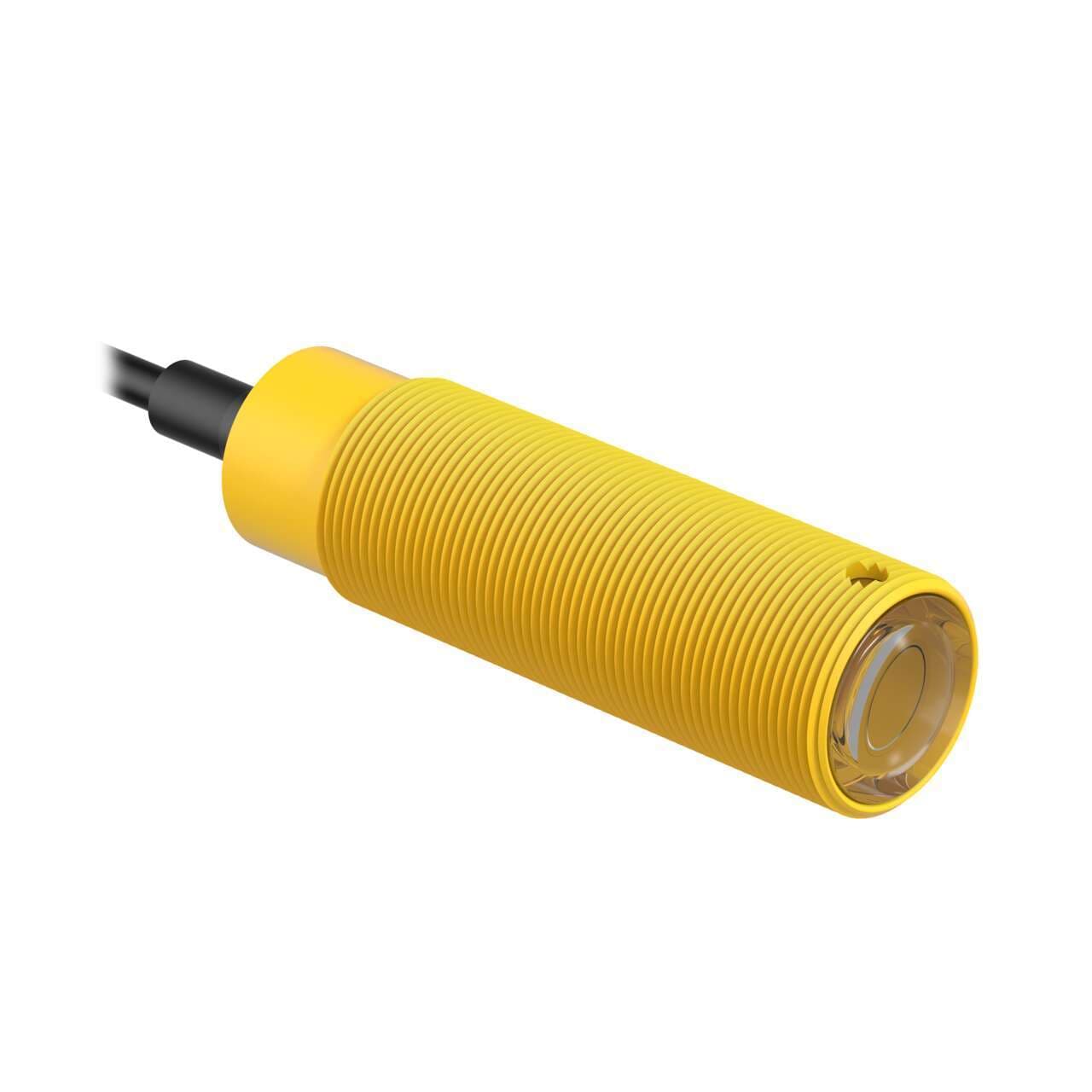

SM2A30PRLB Banner Proximity Sensors
Part#:SM2A30PRLB
Manufacturer:Banner
Alt. Part#:27384
Product Lifecycle:Active
Get a quick Quote!
SM30 Series: Receiver - Frequency B PBT Polyester; Range: 150 m; Input: 24-240 V ac; Output: SPST Solid-State - Light Operate; 2 m (6.5 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Proximity Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SM2A30PRLB Banner price in the box on the right side or send a quick quote.
Product Details
- Weight222.26008 g
- Country Of OriginUS
- Primary brand Banner Engineering
- Functions Photo-electric sensor receiver red LED (power ON)
- Product series / family name EZ-BEAM series
- Design through-beam system / opposed mode "B" modulation frequency washdown rated
- Thread size M30
- Main function Sensor (Photo-electric)
- Shape Cylindrical threaded/barrel
- Degree of protection IP67 NEMA 6P
- Supply voltage (AC) 24Vac-240Vac (200Vac / 220Vac nom.)
- Sensing distance 150m
- Operating mode Light-ON
- Order code / Manufacturer SKU 27384
- Sub-range name SM30 series
- Light Color Infrared (IR)
- Wavelength 880 nm
- Response time 10ms / 0.01 s
- Material thermoplastic housing
- Connection type Pre-wired with 6.5ft / 2m cable terminated with bare end flying leads
- Ambient air temperature for operation -40...+70 °C
- Digital outputs 1 x digital output (Solid-state AC output)
- Compliant with standard(s) cURus CSA CE
- Power AC
- Connection Cable
- IP Rating IP67
- Max Sensing Distance (mm) 150000
- Max Op. Temp. (°C) 70
- Delay at Power-up (ms) N/A
- Feature: Hazardous Area No
- Primary Housing Material Thermoplastic
- Outputs Solid-State AC Switch
- Indicator LEDs
- Opposed Mode Emitter/Receiver Receiver
- Housing Style Barrel
- Quick Disconnect Type No QD
- Barrel Diameter (mm) 30
- Feature: Timing (Hold/Delay) No
- Sensing Beam Infrared LED
- Special Feature: Intrinsically Safe No
- Number of Pins 3
- IO Link No
- Sensing Mode (General) Opposed
- Output response time (ms) 10
- Max Op. Relative Humidity [%] 90% @ 50°C
- Feature: Chemical Resistant No
- Special Feature: Remote Teach No
- Lens Material Acrylic
- Feature: Audible No
- Cable Length (m) 2
- Power Supply/Supply Voltage 24-240 V ac
- Special Feature: Water Detection No
- Adjustments N/A
- Sensing Mode (Detailed) Receiver
- Operation Light Operate
- Repeatability (µs) 1500
- Feature: Encapsulated Yes
- Input/Output Solid-State AC Switch
- Min Op. Temp. (°C) -40
- NEMA Rating NEMA 6P
- DeviceNet No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SM2A30PRLB Description
Banner Engineering SM2A30PRLB is a photo-electric sensor designed for through-beam system applications, part of the SM30 series. This sensor functions as a receiver alone, featuring a thermoplastic housing and is pre-wired with a 6.5ft / 2m cable terminated with bare end flying leads. It operates on a supply voltage of 24Vac-240Vac (200Vac / 220Vac nom.) and can function within an ambient air temperature range of -40 to +70°C. The SM2A30PRLB offers a degree of protection rated at IP67, NEMA 6P, and IP69K, making it suitable for washdown environments. It has a cylindrical threaded/barrel shape with an M30 thread size. This sensor provides 1 x digital output (Solid-state AC output) and has a sensing distance of up to 150m. It operates with an infrared light source at a wavelength of 880 nm and has a response time of 10ms / 0.01 s. The operating mode for this sensor is Light-ON.
