S18LRRRP Banner Electronic Components
Part#:S18LRRRP
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!

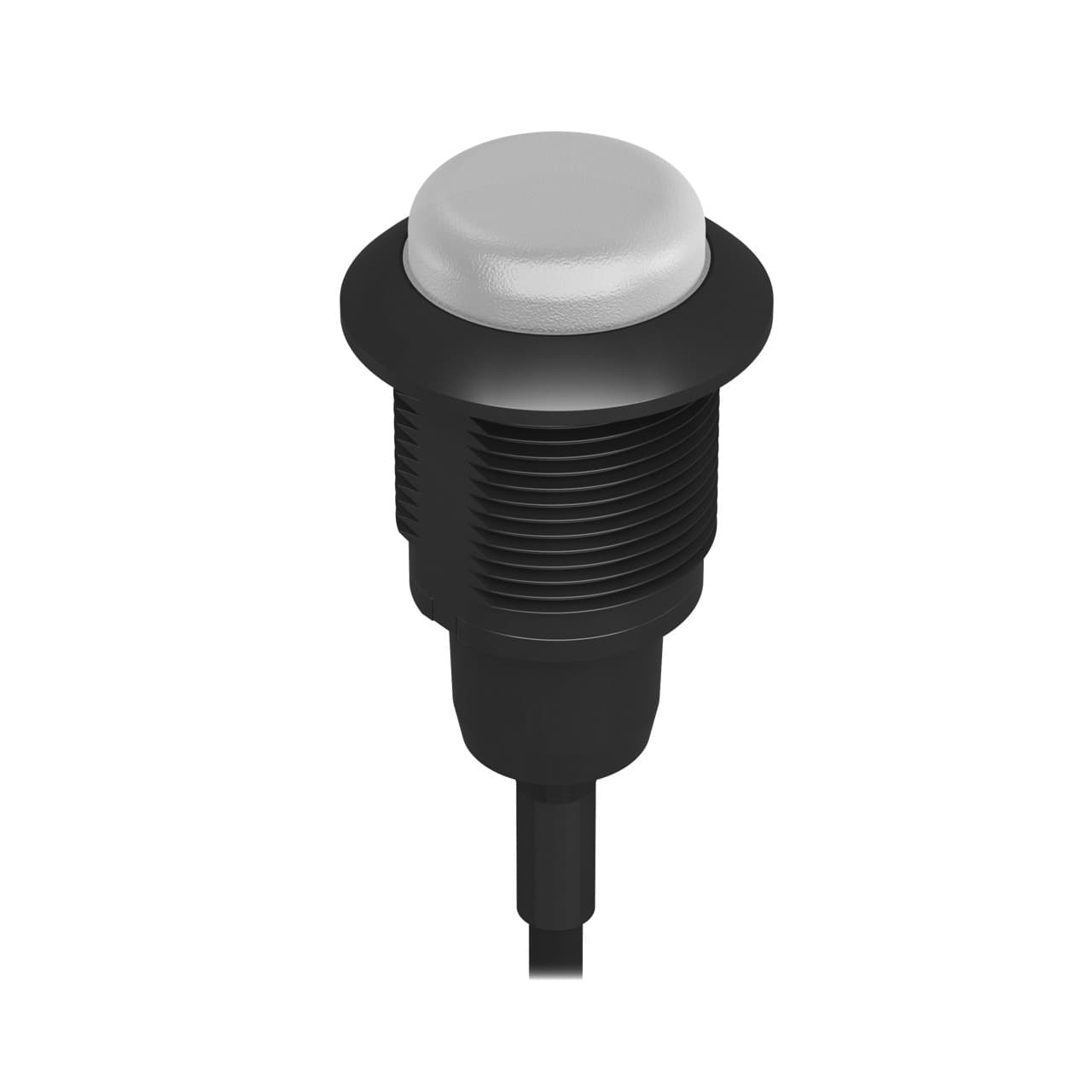

S18 EZ-LIGHT - 18 mm - IP67, Three Color: Red Red Red, 10-30 V dc PNP Input, 4 Wire 2 m Cable
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the S18LRRRP Banner price in the box on the right side or send a quick quote.
Product Details
- Mounting Thread M18 x 1.0
- Connection Cable
- Color 3 - Wavelength/Color Temp/Coordinates 625 nm
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Supply Voltage 10-30 V dc
- Feature: Washdown Rated Yes
- Power DC
- Animation Option 1 Solid On
- Primary Housing Material Polycarbonate
- Color Technology Standard LED
- Color Option 3 Red
- NEMA Type and UL Type Rating NEMA and UL 4X, 13
- Feature: Audible No
- Number of Colors / Segments 3
- Lumens Color 2 1.1
- Max Input Response Time (ms) 1
- IO Link No
- Housing Style Barrel Mount - Flat Window
- Lumens Color 1 1.1
- Max Current Color (mA) 25
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Indication Yes
- Color 1 - Wavelength/Color Temp/Coordinates 625 nm
- Number of Input Pins/Conductors 4
- Primary Window Material Polycarbonate Diffused
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 2 Red
- Input Type PNP
- Feature: Hazardous Area No
- Power Source DC
- Product Size (mm) 18
- Color 2 - Wavelength/Color Temp/Coordinates 625 nm
- Physical Dimensions (LxWxH or DxH mm) 23.5 x 35.7
- Feature: Chemical Resistant No
- Environmental Rating IP67; IP69
- Wireless No
- Cable Length (m) 2
- Color Option 1 Red
- Lumens Color 3 1.1
- Min Op. Temperature (°C) -40
- Multi-Color Device Single Color On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents S18LRRRP Specs
1-year warranty
