IMT.448P Banner Fiber Optic Sensors
Part#:IMT.448P
Manufacturer:Banner
Alt. Part#:71285
Product Lifecycle:Active
Get a quick Quote!
Glass Fiber; Opposed Mode; Bundle Dia.: 0.027 in.; PVC w/Monocoil Sheath 96 in long; #8-32 Threaded End Tip; Terminated for Glass Fiber Sensors
About the manufacturer: Banner is one of the manufacturers that offers Fiber Optic Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the IMT.448P Banner price in the box on the right side or send a quick quote.
Product Details
- Weight90.7184 g
- Country Of OriginUS
- Sub-range name Glass fiber series
- Diameter 0.7mm fiber core
- Primary brand Banner Engineering
- Design through-beam system / opposed mode Individual fiber
- Order code / Manufacturer SKU 71285
- Main function Fiber sensor
- Functions Fiber optic sensor
- Length 8ft / 2.44m
- Material Brass sensing end Glass fiber PVC over monocoil (fiber sheath)
- Product series / family name Fiber sensors
- Shape Cylindrical (threaded) end tip
- Ambient air temperature for operation +105 °C
- Dimensions 8x32mm sensing area
- Beam Exit In-line
- Flex Relief No
- Max Distance: DF-G1 (mm) No Data
- Fiber Sheathing Material (Jacket) PVC over Stainless Steel Monocoil
- Max Temp ( °C) 105
- Max Distance: DF-G3 (mm) No Data
- Sensing Mode (General) Opposed
- Termination Terminated
- Measured Max Distance (mm) No Data
- Fiber Optic Type Glass
- Minimum Bend Radius (mm) 25
- Application: Vacuum Feed Through None
- Sensing Mode (Detailed) Reflective
- Fiber Length (m) 2.438
- Integrated Lens No
- Fiber Sensing End Size - Mounting Area #8-32 thread
- Sensing End Material (Specific) Brass
- Fiber Sensing End Size #8-32 thread
- Application: Liquid Level No
- Fiber Sensing End Tip Thread
- Sensing End Segment 1 Ferrule
- Max Distance: DF-G2 (mm) No Data
- Housing Style Round
- Core Diameter (mm) 0.7
- Feature: Chemical Resistant No
- Sensing End Segment 2 Thread
- Feature: Small Object Detection No
- Tariff Fiber Meters (fbm) 343.81
- Quantity Included 1
- Retractile No
- Feature: Extended Range No
- Termination Type Glass Fiber Sensors
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
IMT.448P Description

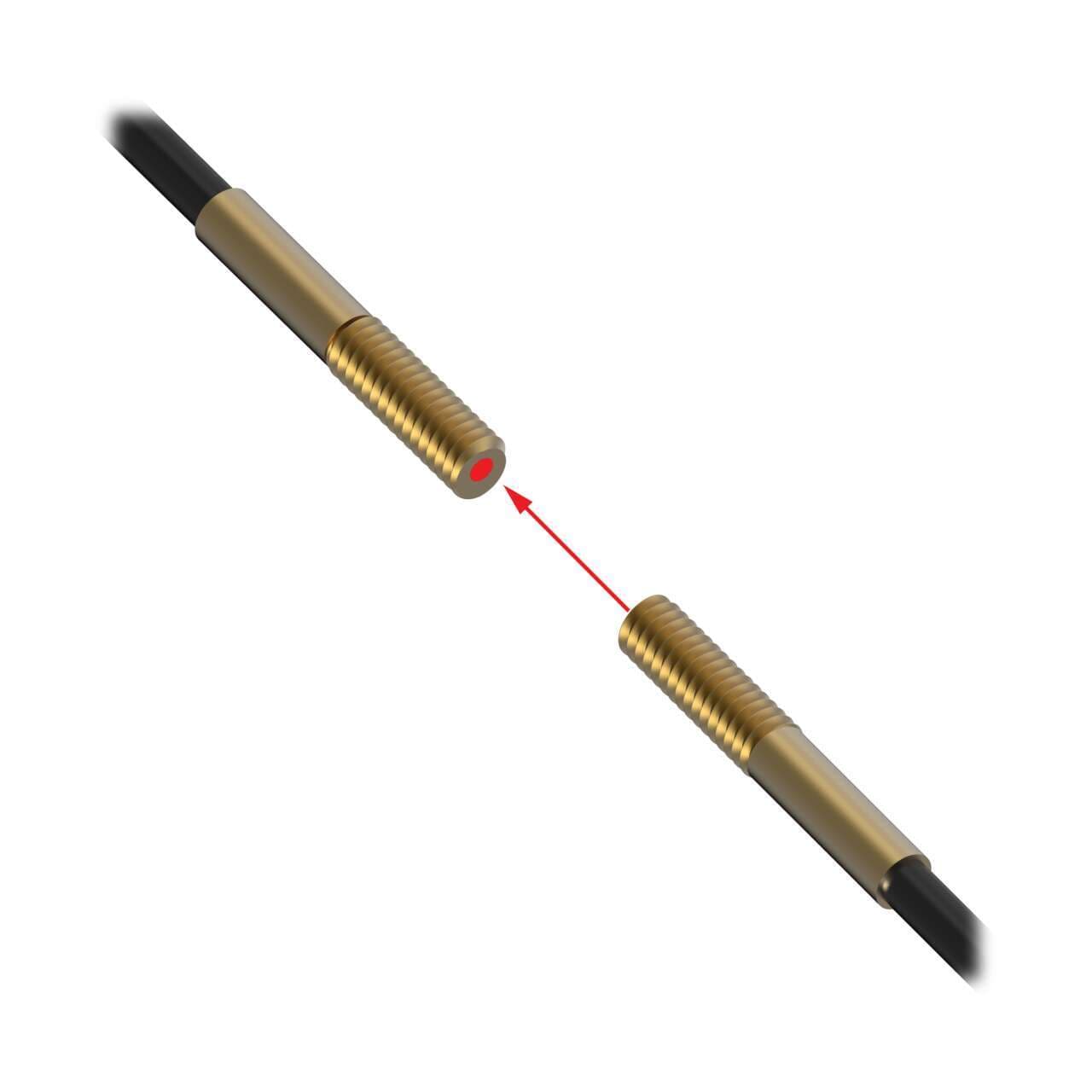

Banner Engineering IMT.448P is a fiber sensor belonging to the Glass fiber series, designed for through-beam system / opposed mode individual fiber in-line sensing. It features a cylindrical (threaded) probe tip with dimensions of an 8x32mm sensing area. The construction includes a brass sensing end and glass fiber with a PVC over monocoil fiber sheath. The total length of the sensor is 8ft / 2.44m, and it has a fiber core diameter of 0.7mm. It is designed to operate in ambient air temperatures up to +105°C.
Related documents IMT.448P Specs
