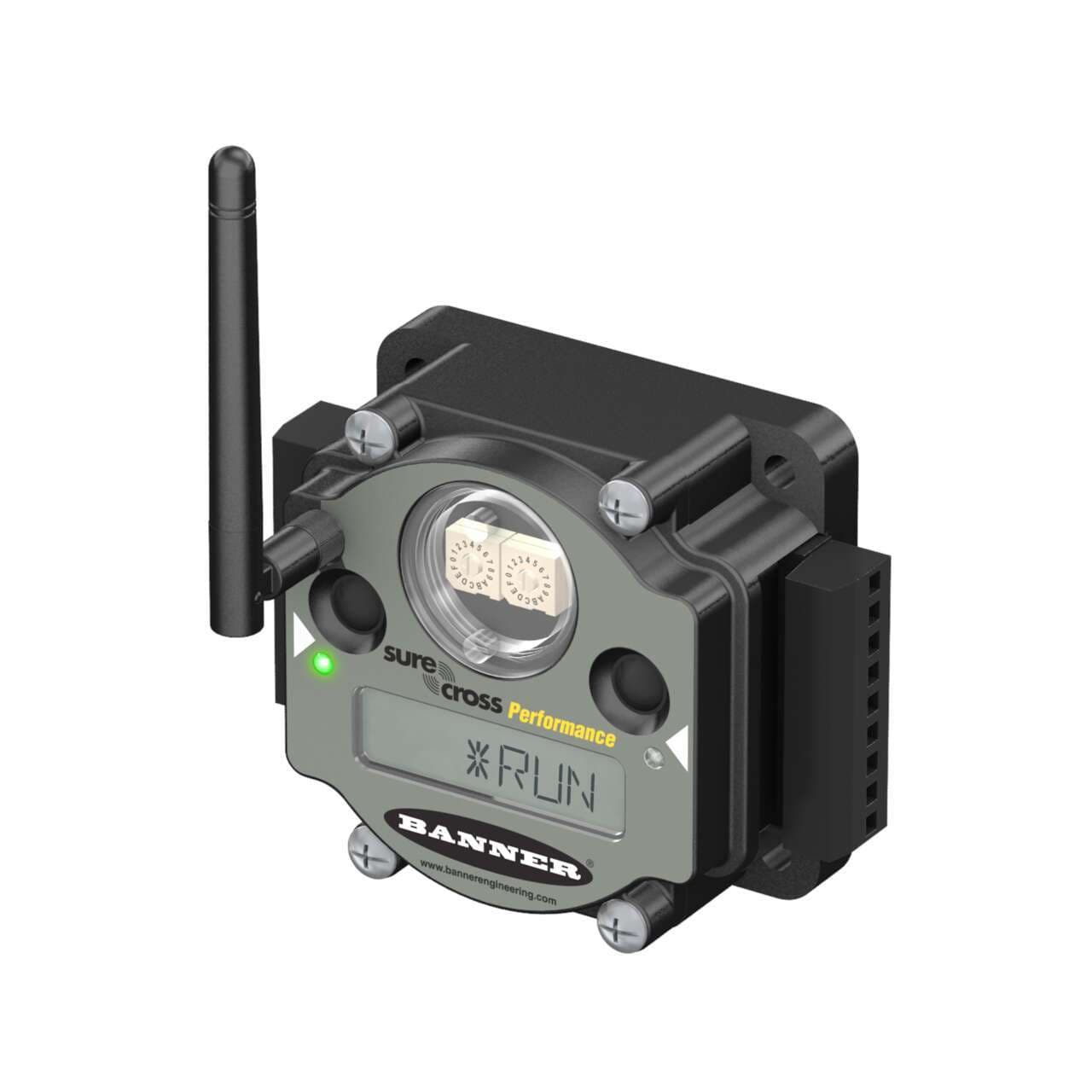

DX80N9X6S-P8C Banner I/O Modules
Part#:DX80N9X6S-P8C
Manufacturer:Banner
Alt. Part#:18809
Product Lifecycle:Active
Get a quick Quote!
DX80 Performance 900 MHz Node 1 W IP20; 10-30 V dc External Antenna RS485; Up to 12 Discrete PNP IO; External Terminals
About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DX80N9X6S-P8C Banner price in the box on the right side or send a quick quote.
Product Details
- Weight430.9124 g
- Country Of OriginUS
- Input/Output Discrete
- Point-to-Multipoint Topology Yes
- Point-to-Point Topology Yes
- Wireless Yes
- Discrete Outputs Yes
- Output Details 12 PNP (not exceeding 12 I/O points)
- Min Temp Operating Conditions -20
- Feature: Hazardous Area Yes
- Environmental Rating (IP) IP20
- LCD Display Yes
- Modbus RTU No
- Device Type Node
- Max Temp Operating Conditions 80
- Modbus/TCP No
- Power Supply 10-30 V dc
- Power DC
- Housing Style External Terminals
- PROFINET No
- EtherNet/IP No
- RS-232 No
- Input Details 12 PNP (not exceeding 12 I/O points)
- Min Operating Temperature ( °C) -20
- Tree Topology No
- Wireless Radio Frequency 900 MHz
- Environmental Rating (NEMA) NEMA 1
- Star Topology Yes
- RS-485 Yes
- Relative Humidity 95%
- Discrete Inputs Yes
- Hazardous/Intrinsically Safe Classification Class I, Division 2/Zone 2; ATEX Zone 2
- 1-wire Serial Interface No
- Max Operating Temperature ( °C) 80
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DX80N9X6S-P8C Description
Banner Engineering DX80N9X6S-P8C is a Remote Terminal Unit (RTU) from the SureCross DX80 series, designed for surface mounting. It features a polycarbonate housing, a polycarbonate rotary dial cover, polyester labels, an EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. This unit operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP20 and NEMA 1. With dimensions of H44.5mm x W103.3mm x D80.1mm, the rectangular-shaped RTU supports 12 x digital inputs (30Vdc 3mA; PNP) which can also function as digital PNP outputs (100mA 30Vdc). It is equipped with 2 x buttons, 2 x bi-color LEDs suitable for Ex e II applications, and utilizes FHSS (Frequency Hopping Spread Spectrum) technology for enhanced communication. Connection is facilitated through detachable screw-clamp connectors and an RP-SMA connector. The device requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and operates on a 900MHz ISM band frequency with 1W power, capable of achieving a maximum transmission distance of 9.6km at nominal emission power.
