DX80N9Q120PPB11 Banner I/O Modules

Banner DX80N9Q120PPB11 Wireless Q120 Pendant Node 900 Mhz; Integrated Battery; Two Operator Inputs (2 Flush Push Buttons); Four Color LED Indicator Light Output
Banner

Part#:DX80N9Q120PPB11

Manufacturer:Banner

Alt. Part#:806113

Product Lifecycle:Active

Get a quick Quote!

Wireless Q120 Pendant Node 900 Mhz; Integrated Battery; Two Operator Inputs (2 Flush Push Buttons); Four Color LED Indicator Light Output

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80N9Q120PPB11 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight544.3104 g
  • Country Of OriginUS
  • Power Supply
    2 AA Batteries
  • Input/Output
    Discrete
  • Operator Type
    Flush Button - Flush Button
  • Feature: Hazardous Area
    No
  • Wireless
    Yes
  • Point-to-Point Topology
    Yes
  • RS-232
    No
  • Tree Topology
    No
  • Wireless Radio Frequency
    900 MHz
  • Star Topology
    Yes
  • RS-485
    No
  • Application: Indicator Light
    Yes
  • 1-wire Serial Interface
    No
  • EtherNet/IP
    No
  • Modbus/TCP
    No
  • PROFINET
    No
  • Modbus RTU
    No
  • Environmental Rating (IP)
    IP65
  • Relative Humidity
    90% at 50° C
  • Discrete Inputs
    Yes
  • Number of Buttons
    2
  • Power
    Battery
  • Input Details
    Two Button
  • Ships With Battery
    Yes
  • Min Temp Operating Conditions
    -25
  • Max Temp Operating Conditions
    70
  • Housing Style
    Integrated Battery
  • Device Type
    Push Button
  • Output Details
    Light
  • Point-to-Multipoint Topology
    Yes

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

DX80N9Q120PPB11 Description

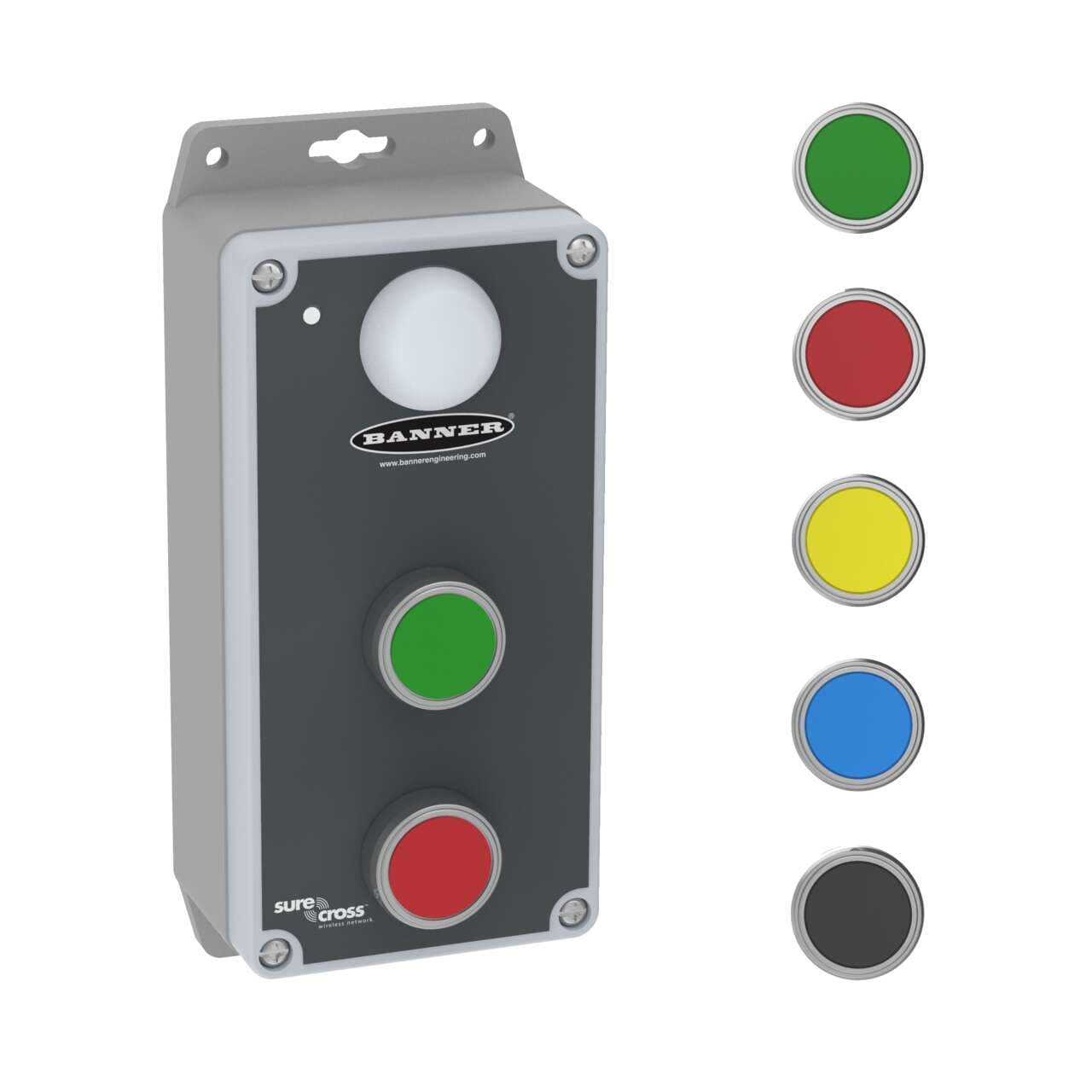

Banner Engineering DX80N9Q120PPB11 is a control station from the SureCross series, featuring a polycarbonate housing with stainless steel hardware designed for durability. It operates within an ambient air temperature range of -25°C to +70°C and offers an IP65 degree of protection against dust and water ingress. This model functions on a 900MHz ISM band with a 1W wireless battery-powered pendant station that includes an indicator. It is equipped with two flush push-buttons with LED illumination for clear operation status indication. The operating mode can be set to either momentary or latched NO (Normally Open) touch output, catering to various application needs. The supply voltage required for operation is 3.6Vdc, and it features a gray housing color.

Related documents DX80N9Q120PPB11 Specs

DX80N9Q120PPB11 209216.pdf
