DX80G2M6S-P8 Banner I/O Modules

Banner DX80G2M6S-P8 DX80 Perf 2.4 GHz Gateway 65 mW IP67; 10-30 V dc Ext Antenna RS485; Up to 12 Disc PNP IO
Banner

Part#:DX80G2M6S-P8

Manufacturer:Banner

Alt. Part#:17429

Product Lifecycle:Active

Get a quick Quote!

DX80 Perf 2.4 GHz Gateway 65 mW IP67; 10-30 V dc Ext Antenna RS485; Up to 12 Disc PNP IO

About the manufacturer: Banner is one of the manufacturers that offers I/O Modules that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the DX80G2M6S-P8 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight635.0288 g
  • Country Of OriginUS
  • Output Details
    up to 12 sourcing outputs
  • Max Operating Temperature ( °C)
    85
  • PROFINET
    No
  • Discrete Outputs
    Yes
  • Min Temp Operating Conditions
    -40
  • Tree Topology
    No
  • Input/Output
    Discrete
  • Point-to-Multipoint Topology
    Yes
  • Modbus/TCP
    No
  • Power
    DC
  • Environmental Rating (NEMA)
    NEMA 6
  • Feature: Hazardous Area
    No
  • Housing Style
    Enclosed Terminals
  • Min Operating Temperature ( °C)
    -40
  • Modbus RTU
    Yes
  • Power Supply
    10-30 V dc
  • Environmental Rating (IP)
    IP67
  • Input Details
    up to 12 sourcing inputs
  • Relative Humidity
    95%
  • EtherNet/IP
    No
  • RS-232
    No
  • Wireless
    Yes
  • Device Type
    Gateway
  • LCD Display
    Yes
  • Star Topology
    Yes
  • RS-485
    Yes
  • Discrete Inputs
    Yes
  • Max Temp Operating Conditions
    85
  • Point-to-Point Topology
    Yes
  • Wireless Radio Frequency
    2.4 GHz
  • 1-wire Serial Interface
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

DX80G2M6S-P8 Description

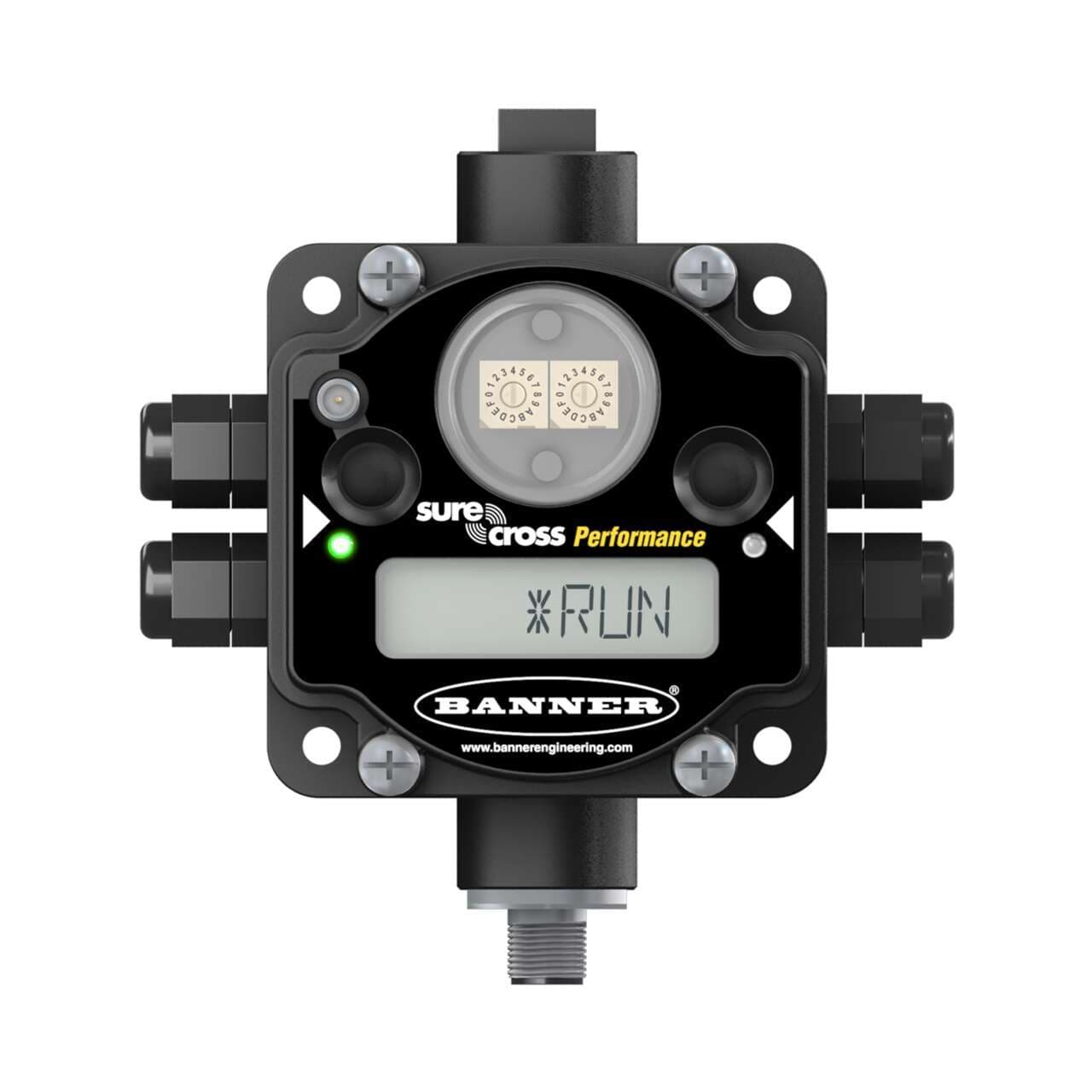

Banner Engineering DX80G2M6S-P8 is a gateway designed for surface mounting with a polycarbonate housing, polycarbonate rotary dial cover, polyester labels, EDPM rubber cover gasket, and nitrile rubber, ensuring durability in various environments. It operates within an ambient air temperature range of -40 to +85°C and offers a degree of protection rated at IP67 NEMA 6. The dimensions of this rectangular-shaped gateway are H59.8mm x W126.7mm x D117.4mm. It operates on a transmission frequency of 2400 MHz and includes 12 x digital inputs (30Vdc 3mA; Sourcing) which can also function as digital sourcing outputs (100mA 30Vdc). As part of the SureCross DX80 series, this performance gateway features I.O. with 2 x buttons, 2 x bi-color LEDs, employs FHSS (Frequency Hopping Spread Spectrum) technology alongside Time Division Multiple Access (TDMA) for enhanced communication reliability. The connection is facilitated through a wiring chamber with screw-clamp connections, 4 x Pg7 cable accesses, a gld. 1/2" NPT threaded cable access, a 5-pin M12 male connector, and an RP-SMA connector. It requires a supply voltage of 10-30Vdc (12Vdc-24Vdc nom.) and communicates via RS-485 Modbus RTU protocol. With a frequency of 2.4GHz ISM band at 65mW, it can achieve a maximum transmission distance of 3.2km at nominal emission power.

Related documents DX80G2M6S-P8 Specs

DX80G2M6S-P8 158214.pdf
